Work-with List

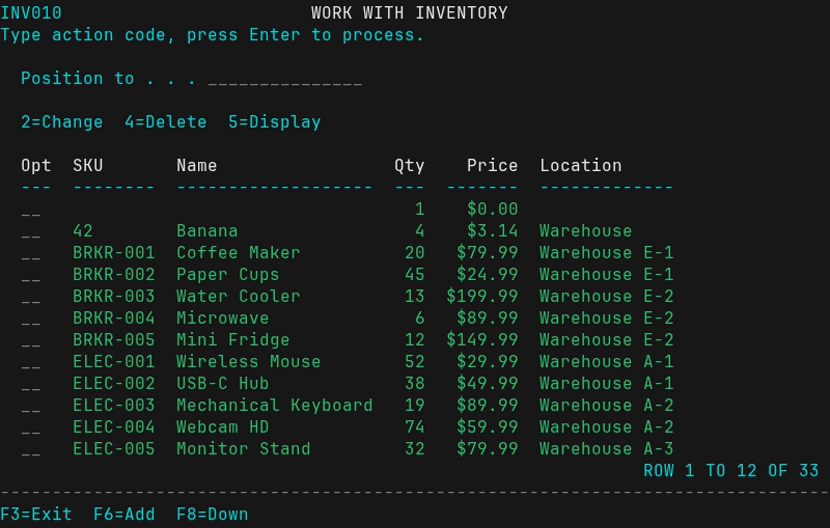

Work-with lists display data with an action input field per row. Users type action codes (2=Change, 4=Delete, etc.) and press Enter to process actions. This is the classic AS/400 interaction pattern.

Basic Usage

from ux3270.dialog import WorkWithList

wwl = WorkWithList("WORK WITH INVENTORY", panel_id="INV01")
wwl.add_column("ID")
wwl.add_column("Name")
wwl.add_column("Qty", align="right")

# Define available actions
wwl.add_action("2", "Change")
wwl.add_action("4", "Delete")
wwl.add_action("5", "Display")

# Add data rows
wwl.add_row(ID="001", Name="Widget A", Qty="100")
wwl.add_row(ID="002", Name="Widget B", Qty="50")

result = wwl.show()

Processing Actions

The show() method returns a list of actions:

result = wwl.show()

if result is None:
    print("Cancelled")
elif not result:
    print("No actions selected")
else:
    for item in result:
        action = item["action"]  # "2", "4", "5", etc.
        row = item["row"]        # The row data dict

        if action == "2":
            edit_item(row["ID"])
        elif action == "4":
            delete_item(row["ID"])
        elif action == "5":
            display_item(row["ID"])

F6=Add Callback

Add a callback to handle F6=Add:

def add_new_item():
    form = Form("ADD ITEM")
    form.add_field("Name", required=True)
    form.add_field("Qty", field_type=FieldType.NUMERIC)
    result = form.show()
    if result:
        # Save to database
        db.insert(result)

wwl.set_add_callback(add_new_item)

Header Fields

Add filter fields above the list:

wwl.add_header_field("Position to", length=20)
wwl.add_header_field("Status", length=10, default="Active")

result = wwl.show()
# Access header values
header_values = wwl.get_header_values()

Typical Application Pattern

while True:
    # Reload data
    wwl.rows.clear()
    for item in db.get_all():
        wwl.add_row(**item)

    result = wwl.show()

    if result is None:
        break  # User pressed F3

    for action in result:
        if action["action"] == "2":
            edit_item(action["row"]["ID"])
        elif action["action"] == "4":
            if confirm_delete():
                delete_item(action["row"]["ID"])

API Reference

ux3270.dialog.WorkWithList

IBM 3270-style work-with list with action codes.

Displays a list of records with an Opt input field per row. Users type action codes (2=Change, 4=Delete, etc.) and press Enter to process actions.

The dialog builds a Screen definition and hands control to Screen for all rendering and input handling.

__init__(title='', panel_id='', instruction='')

add_column(name, width=None, align='left')

add_row(**values)

add_action(code, description)

add_header_field(label, length=10, default='', field_type=FieldType.TEXT)

set_add_callback(callback)

get_header_values()

show()

Display the work-with list and handle user input.

Returns:

Type	Description
Optional[List[Dict[str, Any]]]	List of actions: [{"action": "2", "row": {...}}, ...]
Optional[List[Dict[str, Any]]]	Empty list if no actions selected.
Optional[List[Dict[str, Any]]]	None if cancelled (F3).
