ux3270

IBM 3270-style terminal UI library for Python.

Overview

Create terminal applications with an IBM 3270-style interaction model: display a form, let the user fill it in, continue when they submit.

The library provides high-level dialog components (Form, Menu, Table, etc.) that follow IBM CUA (Common User Access) conventions, built on a low-level Screen API that handles terminal rendering and input.

Features

  • Forms with field validation, help text, and F4 prompt lookups
  • Menus with single-key selection
  • Tables with pagination and column alignment
  • Work-with Lists with action codes per row (AS/400-style)
  • Selection Lists for F4 prompt functionality
  • Tabular Entry for multi-row data entry
  • Message Panels for user feedback

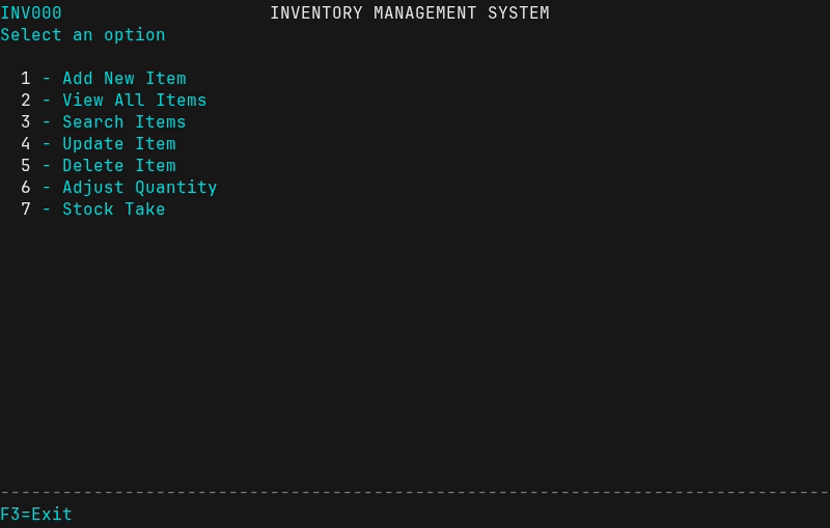

Menu Screenshot

Quick Example

from ux3270.dialog import Form, Menu, show_message

# Create a form
form = Form("DATA ENTRY", help_text="Enter your information")
form.add_field("Name", length=30, required=True)
form.add_field("Email", length=40)
result = form.show()

if result:
    show_message(f"Hello, {result['Name']}!", msg_type="success")

Installation

uv add git+https://github.com/ljosa/ux3270.git

IBM 3270 Colors

The library uses authentic IBM 3270 color conventions:

Color Usage
Green Input fields
Turquoise Labels (protected fields)
White Titles, headers (intensified)
Red Error messages
Yellow Warnings

Terminal Width

Tables and lists automatically adapt to terminal width:

  • Uses actual terminal width (not hardcoded 80 columns)
  • Short columns are preserved at natural width
  • Long columns are truncated to fit available space
  • Truncated content shows > indicator (e.g., "Very long tex>")
